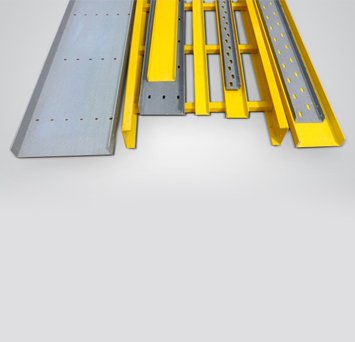

FRP Perforated Cable Tray

We provide a comprehensive range of perforated cable trays, ideal for organizing and supporting cables, including smaller and controlled cables. These trays are designed to accommodate a large number of branch lines and offer excellent load-bearing capabilities.

Perforated cable trays can be suspended using center rod supports, C-hangers, or a two-trapeze configuration. Additionally, they can be mounted on walls using brackets for easy installation. For added security, these trays are available with covers. We also offer customization options to meet specific project requirements.

Advantages

  • Enhanced Ventilation
  • Versatility
  • Easy Maintenance & Upgrades
  • Durability & Strength

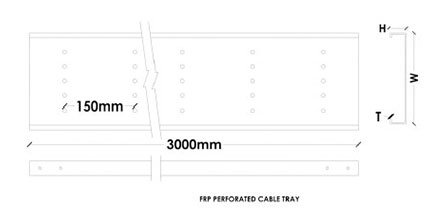

Plexxe Composite FRP PERFORATED CABLE TRAY SPECIFICATIONS

  • Plexxe Composite instrumentation tray is channel type & design for light loads.
  • They are available in solid as well as ventilated construction.
  • Plexxe’s Cable tray is available in polyester as well as vinyl ester resin system.
  • All sections and pre fabricated fittings are pre drilled to fix coupler plates. All fasteners and coupler plates are separate order items.
aboutus-home
FRP Perforated Cable Tray
  Weight Height Thickness
1 50mm 25mm 3mm
2 50mm 50mm 3mm
3 100mm 50mm 3mm
4 150mm 50mm 3mm
5 200mm 50mm 3mm
6 300mm 50mm 3mm
7 50mm 50mm 4mm
8 100mm 50mm 4mm
9 150mm 50mm 4mm
10 200mm 50mm 4mm
11 300mm 50mm 4mm
12 50mm 50mm 5mm
13 100mm 50mm 5mm
FRP Perforated Cable Tray
  Weight Height Thickness
14 150mm 50mm 5mm
15 200mm 50mm 5mm
16 300mm 50mm 5mm
17 100mm 100mm 3mm
18 200mm 100mm 3mm
19 300mm 100mm 3mm
20 100mm 100mm 4mm
21 200mm 100mm 4mm
22 300mm 100mm 4mm
23 100mm 100mm 5mm
24 200mm 100mm 5mm
25 300mm 100mm 5mm
